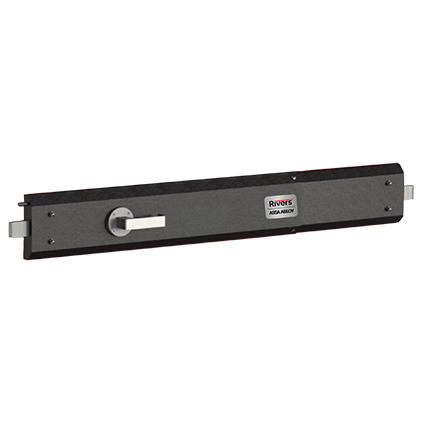

Model D Two-point (Horizontal Lockset)
Rivers Security Model D Two-point Horizontal Lock is a high-security two-point locking device featuring a horizontal lock mechanism for enhanced strength and resistance against forced entry.
Applications: Ideal for secure or restricted-access facilities including schools, government buildings, financial institutions, communication huts, shopping centres, warehouses, and service rooms.
-
Your One Stop Shop
-
Since 1979
-
Professional Workmanship
Characteristics
- Horizontally mounted at two points through door leaf for strength
- Suitable for both open-in & open-out doors
- Compatible with single & double door applications
- Engineered for solid core door construction
- Pair with Lietzke Defender® Series for best protection
Process
Features a 32mm × 10mm zinc-plated steel locking bars extending 45mm on both lock and hinge sides, with a free-egress internal handle and hardened zinc-plated external fixings for enhanced durability and corrosion resistance.
Configuration Options
- Series 1: Internal Handle Only
- Series 2: Internal Handle + External Cylinder
For Fire Doors:
- Series 4: Internal Handle + Self-latching
- Series 4KL: Internal Handle + External Cylinder + Self-latching + Key & Lever
- Series 5: Internal Handle + External Cylinder + Self-latching
Optional microswitch available for integration with security monitoring systems
Finishing Options
- Standard: Powder coated Dulux ‘Hammertone Aztec Black’
- Other colours are available upon request
Standards and Compliance
- Fire Tested: Self-latching models are tested to meet FRL -/240/30
* Test result only rated for Pyropanel Door - Security: Australian Lock Standard (AS4145.2.2008)
- School Facilities Standards: Section SS455 (Door Hardware)
- Patented Design: Australian Patent No. 2012258464
-
